PCAN-USB PRO FD IPEH-004061

Original price was: $499.00.Current price is: $399.00.

Product Features:

  • USB2.0 high-speed mode (compatible with USB1.1, USB2.0, USB3.0)
  • PU2CANFDX2, USB2CANFD-X2
  • Support for ISO (11898-2) and NON-ISO switching;
  • CAN FD data domain (64-bit maximum) bit rate from 25kbit/s to 12Mbit/s
  • Common CAN bit rate range 25 kbit/s to 1 Mbit/s;
  • Timestamp resolution down to a measured 1us;
  • Up to 2500 V electrical isolation per CANFD channel;
  • Built-in 120-ohm termination resistors that can be activated by software, together with two DB9 terminal block 120-ohm termination resistors that can be activated by jumper caps;
  • Support for bus load measurement, error frame detection and bus status monitoring;
  • Support WindowsXP/7/10/11.
  • Linux support, with Python/C# code and examples;

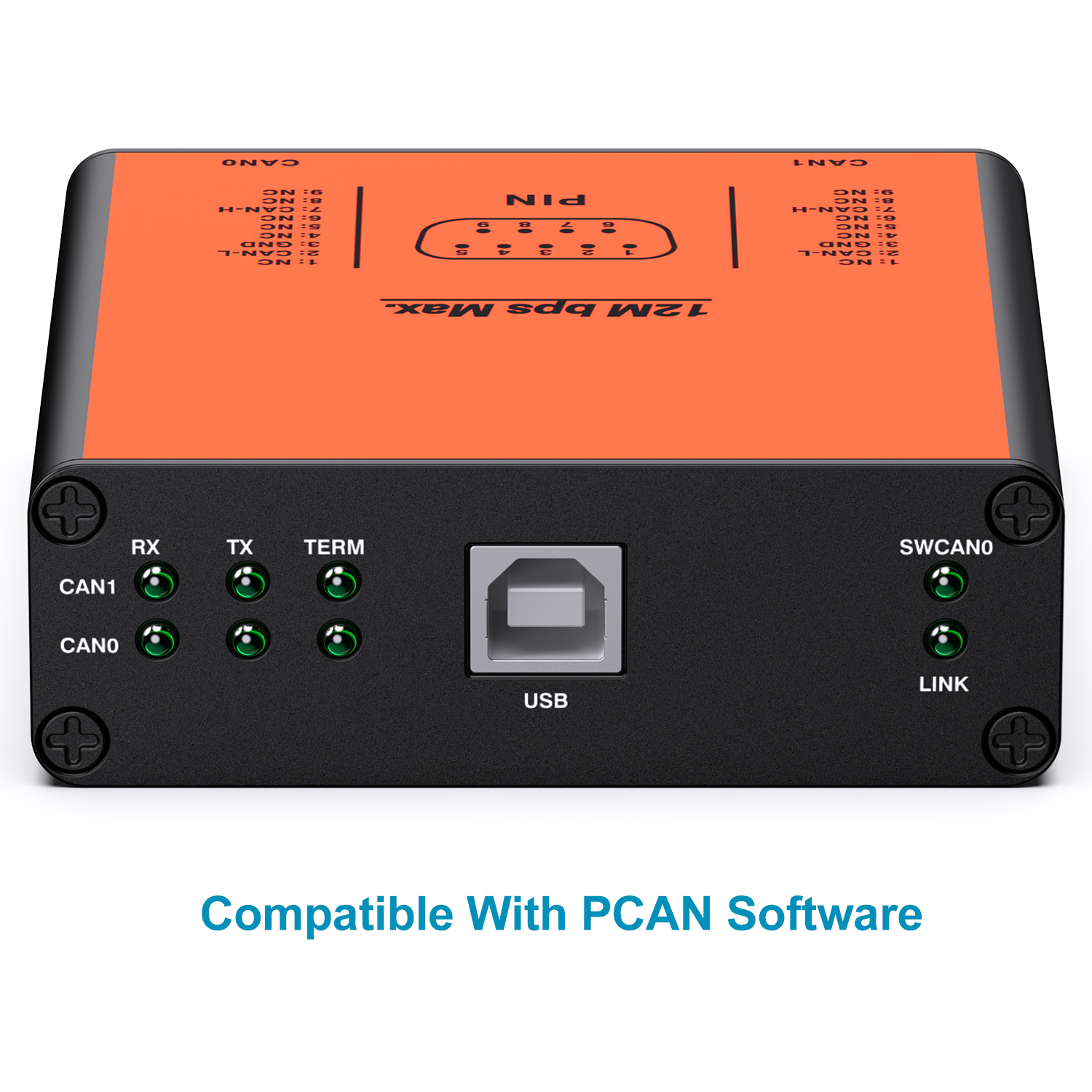

  • Support for PCAN software and APIs;
  • Compatible with open source software such as SavvyCAM and Busmaster

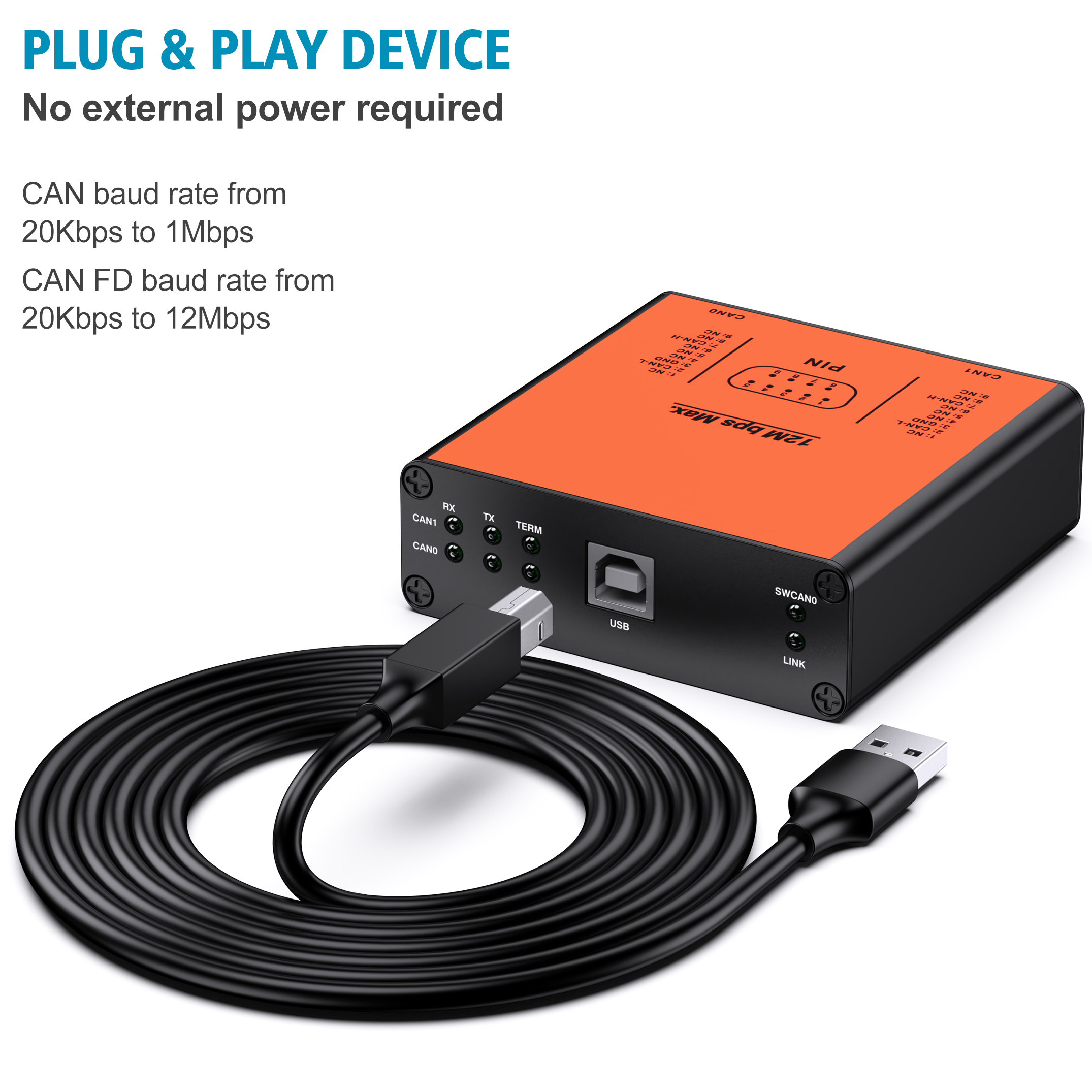

  • Power supply via USB, operating temperature range -40 to 185 °F (-40 to 85 °C)

Manual,Driver,Software:

  • https://docs.123buyelectronic.com/home/

Product Documents

x
Category: SKU: PU2CANFD-X2

Description

Product Line

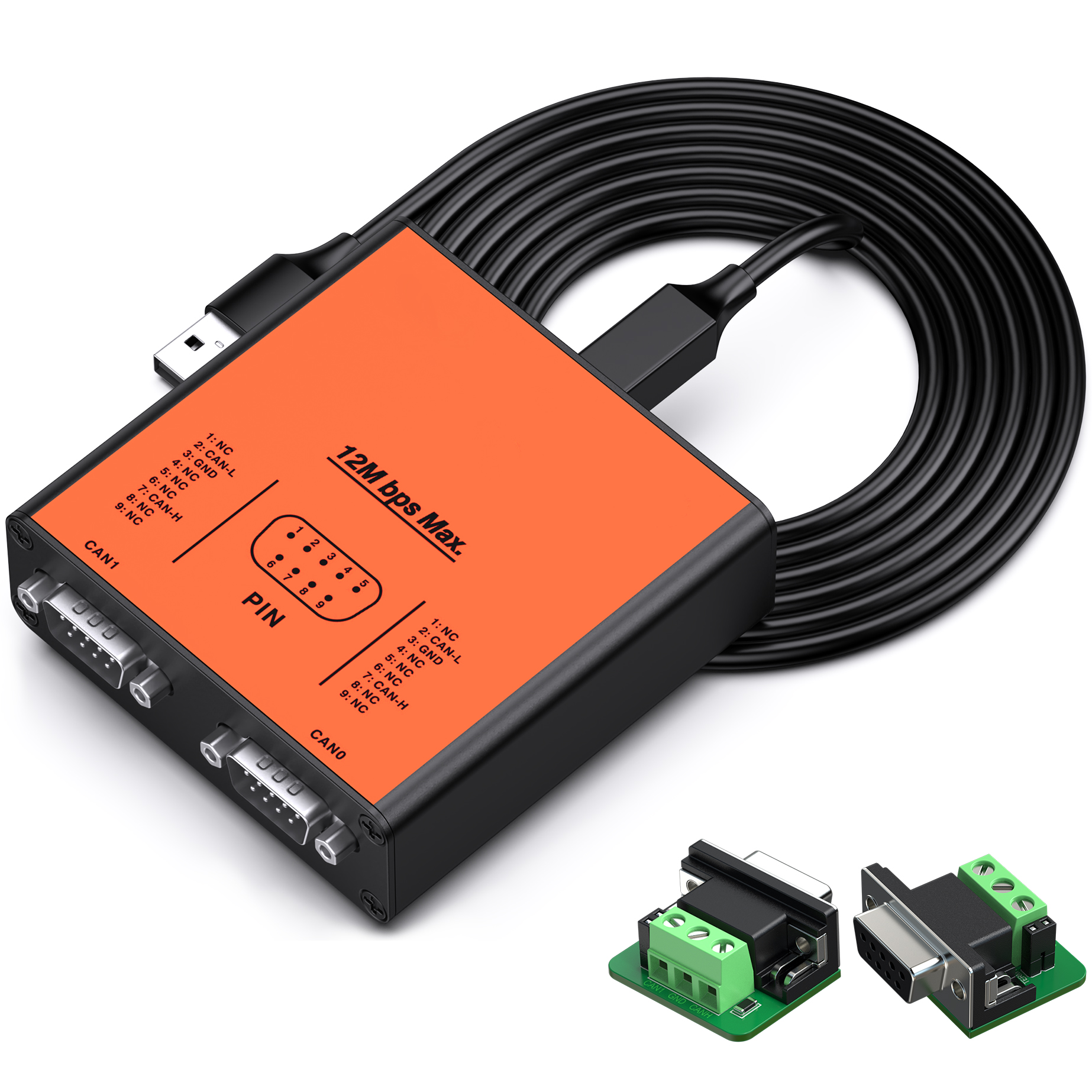

PU2CANFD-X2 (USB2CANFD-X2)

USB to Dual CANFD

Compatible with PCAN-USB PRO FD IPEH-004061

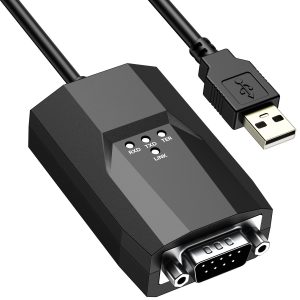

PU2CANFD-C

USB to CANFD, PCAN-USB FD IPEH-004022 compatible

PU2CANFD-MPCIE

Minipcie interface USB to dual CANFD, compatible with IPEH-004046



The PU2CANFD-C is a plug and play high speed USB2.0 to CANFD converter comes with 1.2m high quality Cable enables the connection of one channel CANFD networks to a computer via USB. CANFD is isolated protection against USB 2500V.



1 Description

  • The PU2CANFD-C is a plug and play high speed USB2.0 to CANFD Cable with 1 metre high quality wire-shielding cable enble the CANFD connection to CAN networks from a computer. CANFD channel is isolated against USB with a maximum of 2500V.
  • The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s, PU2CANFD-C supports 120ohm termination resistor enable by software.

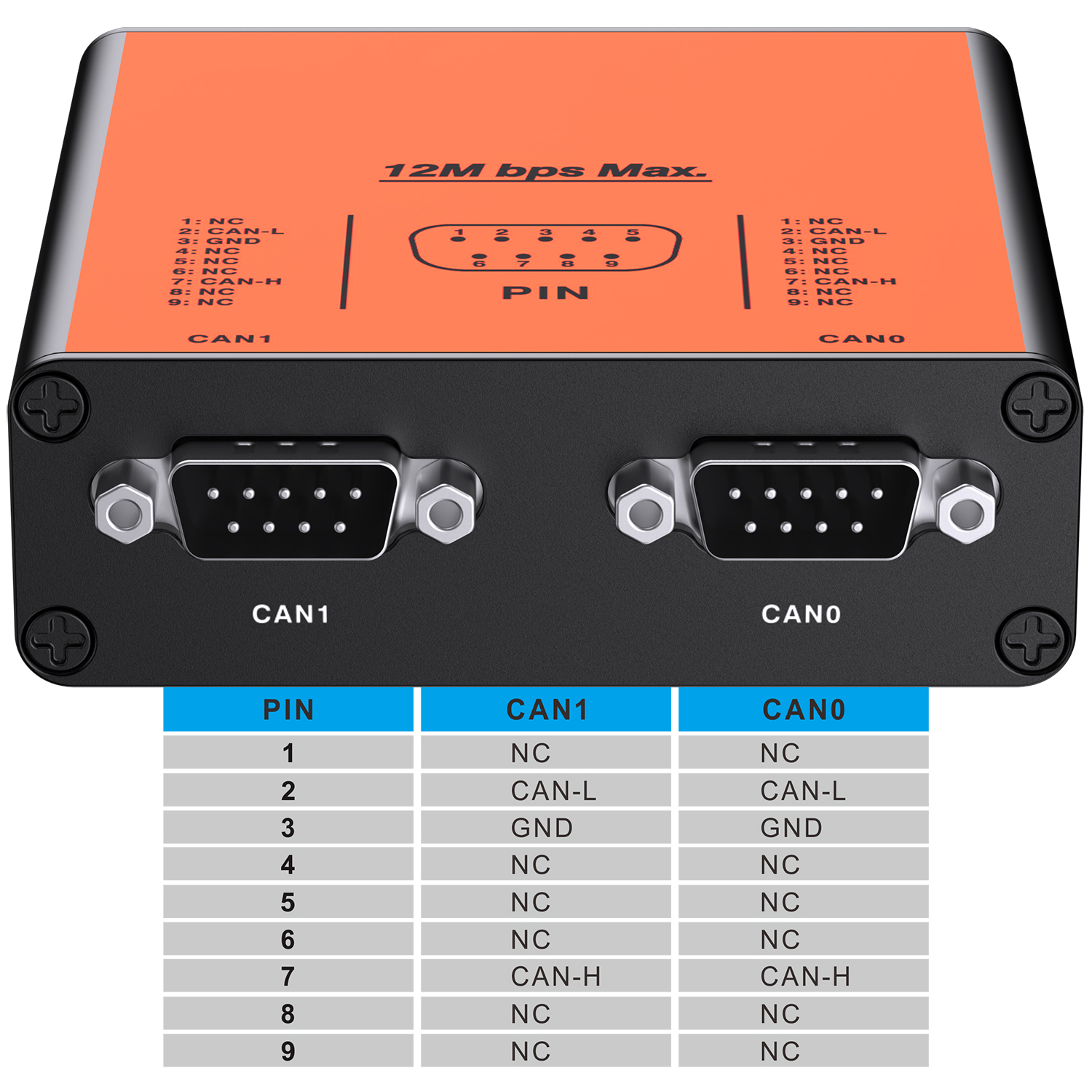

  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA@303-1)
  • Provide Drivers for Windows/Linux, Compatible with windows PCAN-View,Linux Socket CAN,SavvyCAN.
  • The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN connection are included in the scope of supply and support the new standard CAN FD.

2 CAN operation properties

  • Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0)</br>
  • Complies with CAN specifications 2.0A/B and FD</br>
  • CAN FD support for ISO and Non-ISO standard software switchable</br>
  • CAN FD bit rates data field (64 bytes max.) from 25 kbit/s up to 12Mbit/s. </br>
  • Class CAN bit rates from 25 kbit/s up to 1 Mbit/s;</br>
  • Time stamp Resolution Up to 1 us;</br>
  • Signal &Power Separately Isolated Up to 2500 Volts against USB; </br>
  • CAN 120ohm termination resistor Activated/Deactivated Through Software;</br>
  • Support CAN Clock Settings.</br>
  • Measurements of bus load including error frames and overload frames on the physical bus </br>
  • Induced error generation for incoming and outgoing CAN messages</br>
  • Extended operating temperature range -40 – 85C (-40 – 185F)</br>
    </br></br>

3 System Requirements

  • Operating system Windows 10, 8.1, 7 (32/64-bit) or Linux (32/64-bit)
  • A vacant USB port (USB 1.1, USB 2.0 or USB 3.0 ) at the computer or at a USB hub connected to the computer

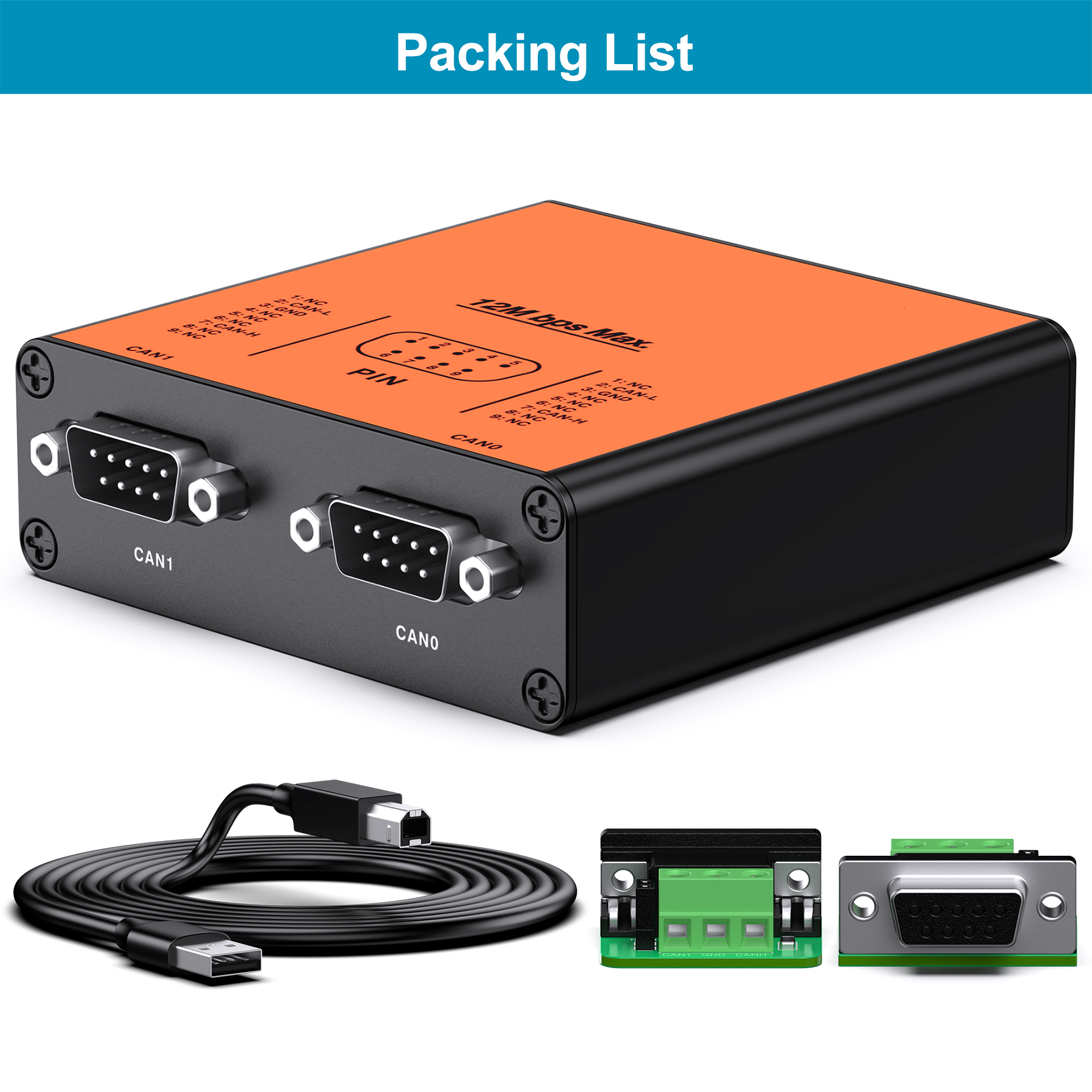

4 Scope of Supply

  • PU2CANFD-C Cable CAN FD interface drivers for Windows 10, 8.1, 7 and Linux (32/64-bit) </br>
  • CAN monitor PCAN-View for Windows</br>

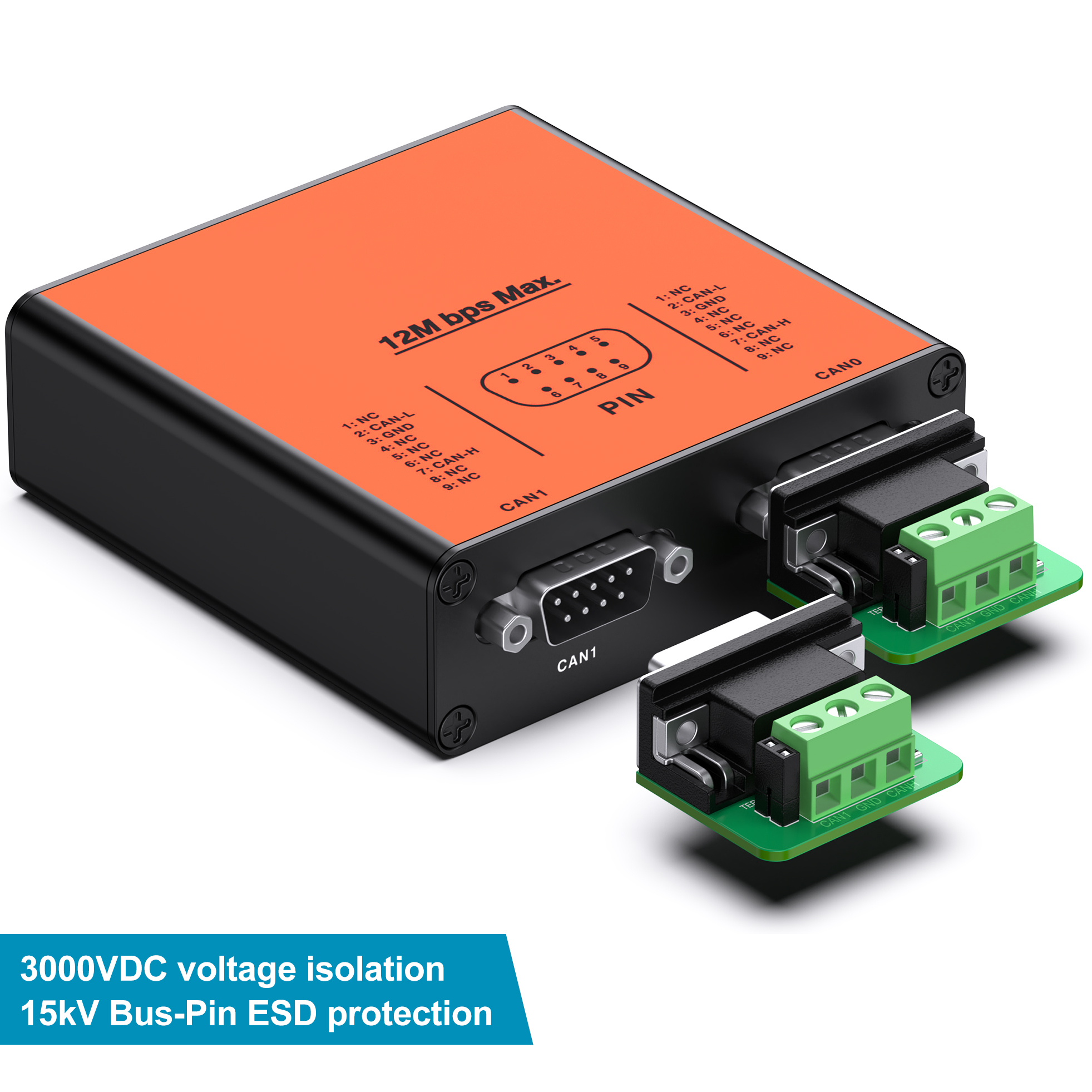

  • Dual DB9 To Terminal Adapter Board with 120ohm TERM RESISTOR Selectable By Jumper</br>
  • Programming interface PCAN-Basic for developing applications with CAN connection</br>
  • Programming interfaces for standardized protocols from the </br>
  • Manual in PDF format</br>



5 Protocols

  • CAN 2.0A (standard format)
  • CAN 2.0B (extended format)
  • CAN FD ISO 11898-1:2015
  • CAN FD non-ISO</br>
  • CAN bit rates 25 kbit/s up to 1 Mbit/s
  • CANFD bit rates 25 kbit/s up to 12Mbit/s

6 Software Support

  • Windows PCAN-VIEW
  • Linux PCAN-VIEW Instruction
  • Linux SOCKET-CAN:CAN Utils
  • SavvyCAN

7 API For Windows And Linux:

  • C#, C++/CLR, Delphi,VB.NET, Java, Phyton 2.6
  • SavvyCAN



8 Specification

Connector
CANFD9PIN D-SUB Connectors
USB Cable1.2M High Quality USB Cable with type A
CAN Features
Protocols

CAN 2.0A (standard format)

CAN 2.0B (extended format)

CAN FD ISO 11898-1:2015

CAN FD non-ISO

CAN bit rates25 kbit/s up to 1 Mbit/s
CANFD bit rates25 kbit/s up to 12Mbit/s
USB ESD

IEC 61000-4-2 Level 4

+25 kV (contact discharge)

+30 kV (air-gap discharge)

Galvanic isolation



Signal &Power Separately Isolated by 2500 Volts against USB

IEC 61000-4-2 Contact

IEC 61000-4-2 Air

ISO 10605 150 pF / 2 k2 Contact

ISO 10605 330 pF 1 2 k2 Contact

Micro controller180MHZ Cortex-M4 MCU
Timestamp resolution1 μs
Built In 120Ω Termination ResistorDisable/Enable Through Software
Software

l Windows PCAN-VIEW AND API

l Linux PCAN-VIEW AND API

l Linux SOCKET-CAN: CAN Utils/C Code/Python Code

l Mac CAN And API

PCAN BASIC API

Windows

Windows CE 6.x

Linux (32/64-bit)

Mac Os

C#, C++/CLR, Delphi,VB.NET, Java, Phyton 2.6
Third Party Software

LabView, CodeSys, Matlab, BUSMASTER, EasyMotion Studio, CANmoon, XX-SCAN, PCAN-Explorer5

Comes with Products:

l savvyCAN

l Busmaster

Others
Temperature-40°~ 85°





Contact Us:
sales@123buyelectronic.com

Additional information

CAN Software

BusMaster, CAN-UTILS, PCAN, SavvyCAN
